P06 / Pay-Off & Take-Up

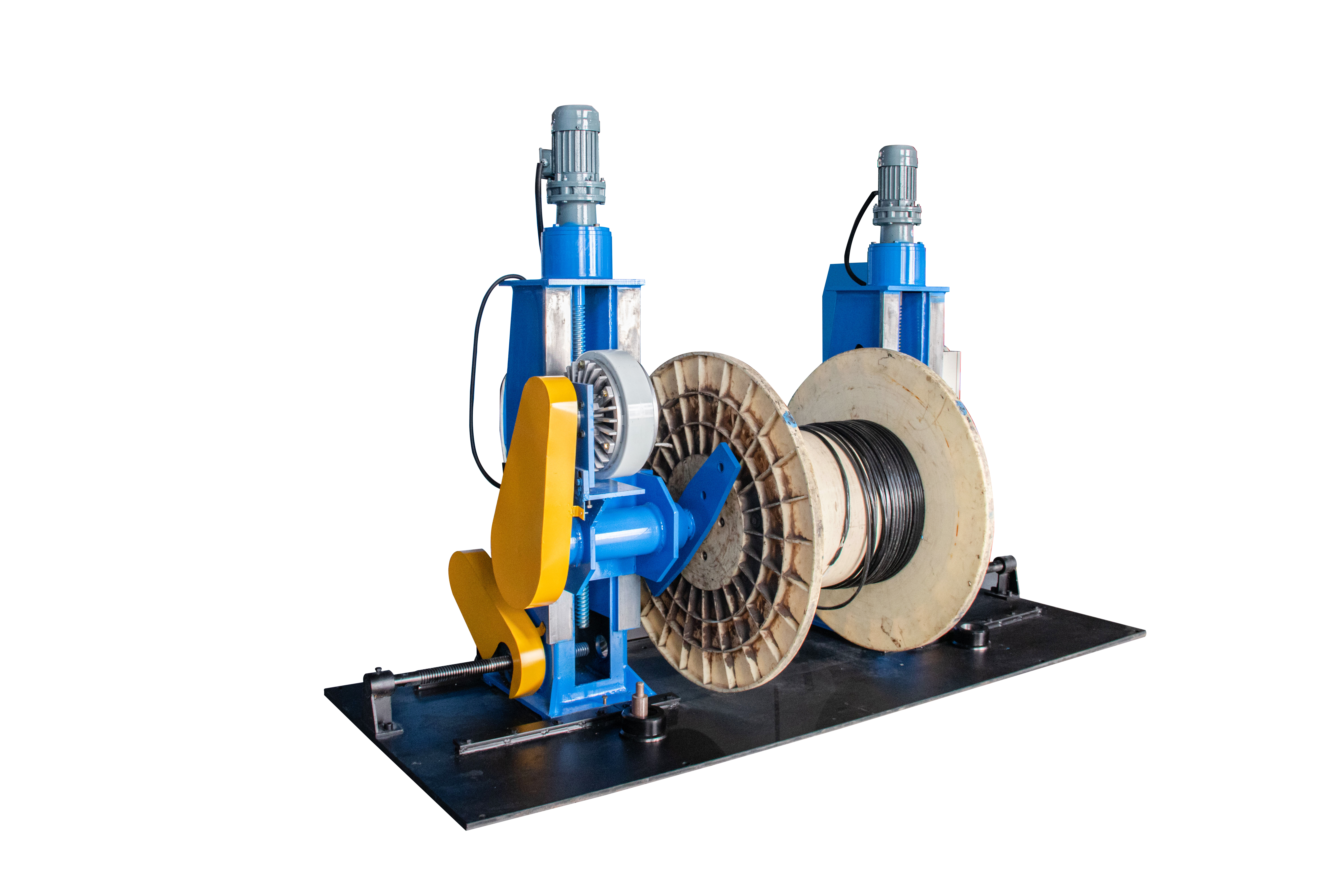

Shaftless Pay-Off & Take-Up Stands
Shaftless reel handling equipment for PN1000–PN1600 reels, with electric lifting and clamping.
Request a Quotation ↗PROCESS & CONFIGURATION
Built for the task.
The supplied range includes separate shaftless pay-off and take-up stands. Both specifications list electric reel lifting and clamping, PN1000–PN1600 reels and a maximum load of 4 tonnes. The take-up specification also describes screw-driven traversing with automatic reversal.
- ↗Separate pay-off and take-up configurations
- ↗Electric reel lifting and clamping
- ↗Take-up with screw-driven traversing and automatic reversal
Specifications
| Both stands: reel range | PN1000–PN1600 |
| Both stands: maximum reel load | 4 t |
| Take-up: maximum cable diameter | 30 mm |
| Take-up: maximum speed | 40 m/min |
| Take-up: motor torque | 40 N·m |
| Take-up: traverse gearbox | 3 mechanical speeds; oil lubrication |
Specifications are taken from the supplied product sheet. Confirm the required configuration and operating conditions before ordering.
