P02 / Steel Tape Armouring

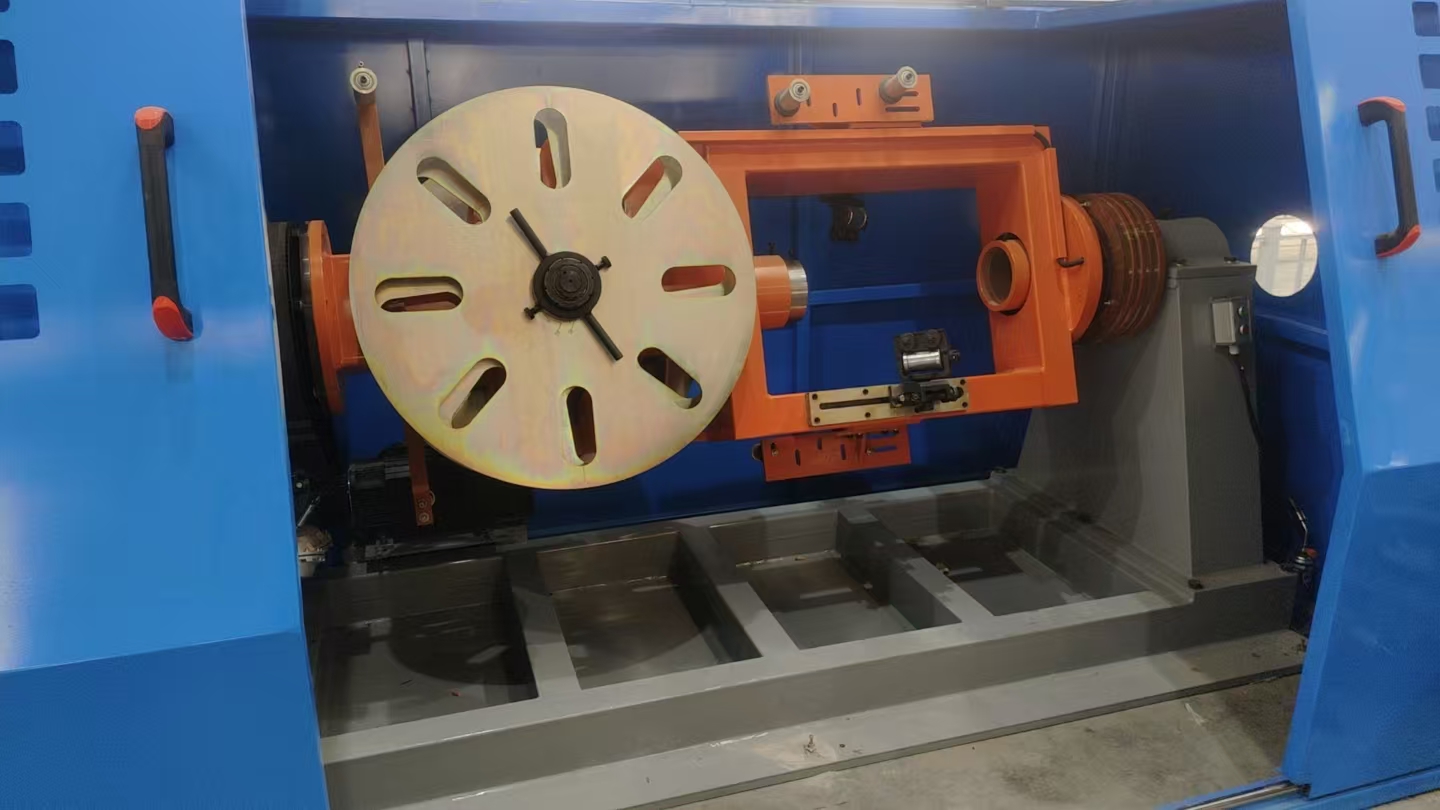

Eccentric Steel Tape Armouring Machine
Eccentric armouring equipment for applying steel tape around cables.
Request a Quotation ↗PROCESS & CONFIGURATION
Built for the task.
This eccentric steel tape armouring machine is specified for tape widths from 15 to 60 mm. The supplied sheet describes an adjustable wrapping angle and a tape-break stop function. Match the machine to your cable construction and tape dimensions before ordering.
- ↗Adjustable wrapping angle
- ↗Tape-break stop function
- ↗Optional pneumatic cantilever lifting device with suction cup
Specifications
| Machine designation | Ø900 |
| Central bore diameter | 160 mm |
| Steel tape width | 15–60 mm |
| Steel tape thickness | 0.2–0.8 mm |
| Maximum head speed | 480 rpm |
| Motor power | 22 kW; servo motor |
Specifications are taken from the supplied product sheet. Confirm the required configuration and operating conditions before ordering.
WORKSHOP DEMONSTRATION
Demonstration
Silent demonstration with English on-screen text.
YOUR NEXT PRODUCTION STEP
Let’s discuss your requirements.
Cable dimensions. Tape materials. Reel specifications. Start with your process.
